TRust

automatic following e-trolley

: A new design aim to resolving the issue of versatility and intent to service seniors with daily carrying belongings from place to place to maintain their independent.

EMMA DANG

ID: 29443008

hdan0006@student.monash.edu

Background

HEALTH | PERSONAL |LEISURE

Senior have a strong preference to stay independent and and enjoy life in older age with a comfortable support. However, with limited mobility and health problem make senior activities become more cumbersome and prevent them from interact normally with the world. They are unable to going out to buy grocery or shopping alone without assist from other people. Hence, this affect older mental health and make their life become more difficult.

Emerging technology for independent support

From capturing independent aspect in life, the creation of automatic following trolley design that intent to service seniors with daily shopping, carrying grocery and heavy belongings from place to place. This is a exploration of task handling and communication robot that would give urge individuals a “TRUST” creation to remain dynamic, increment wellbeing, confidence, overcome limit in mobility and strength, and counter the unhappiness in old age with more psychological excitement.

Concept

Automatic following - Scales adjustment - Guiding projection light

The practical benefits of smart design will not override user perception and control as ergonomic design provides a proper flexible and adjustable design to suit different purposes plus utility customisation feature from smart AI technology will bring a desirable experience for older age and increase the efficiency of work.

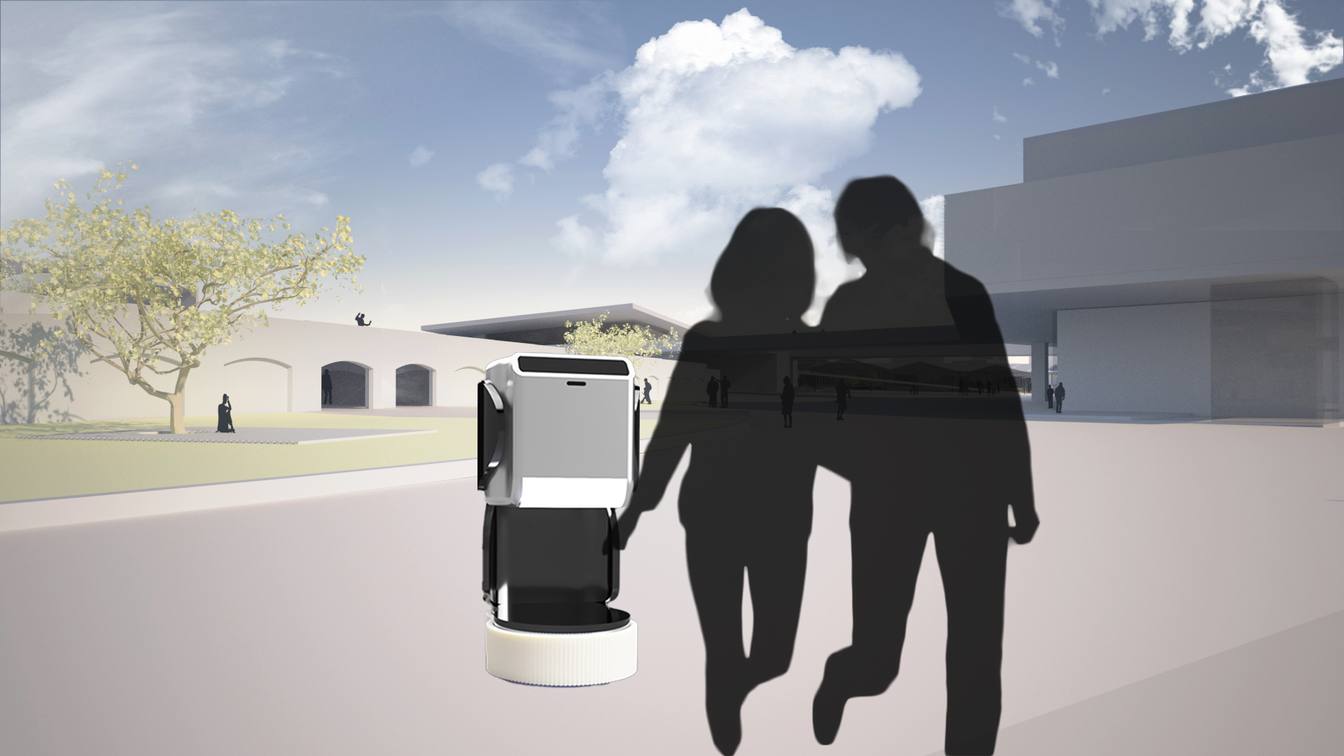

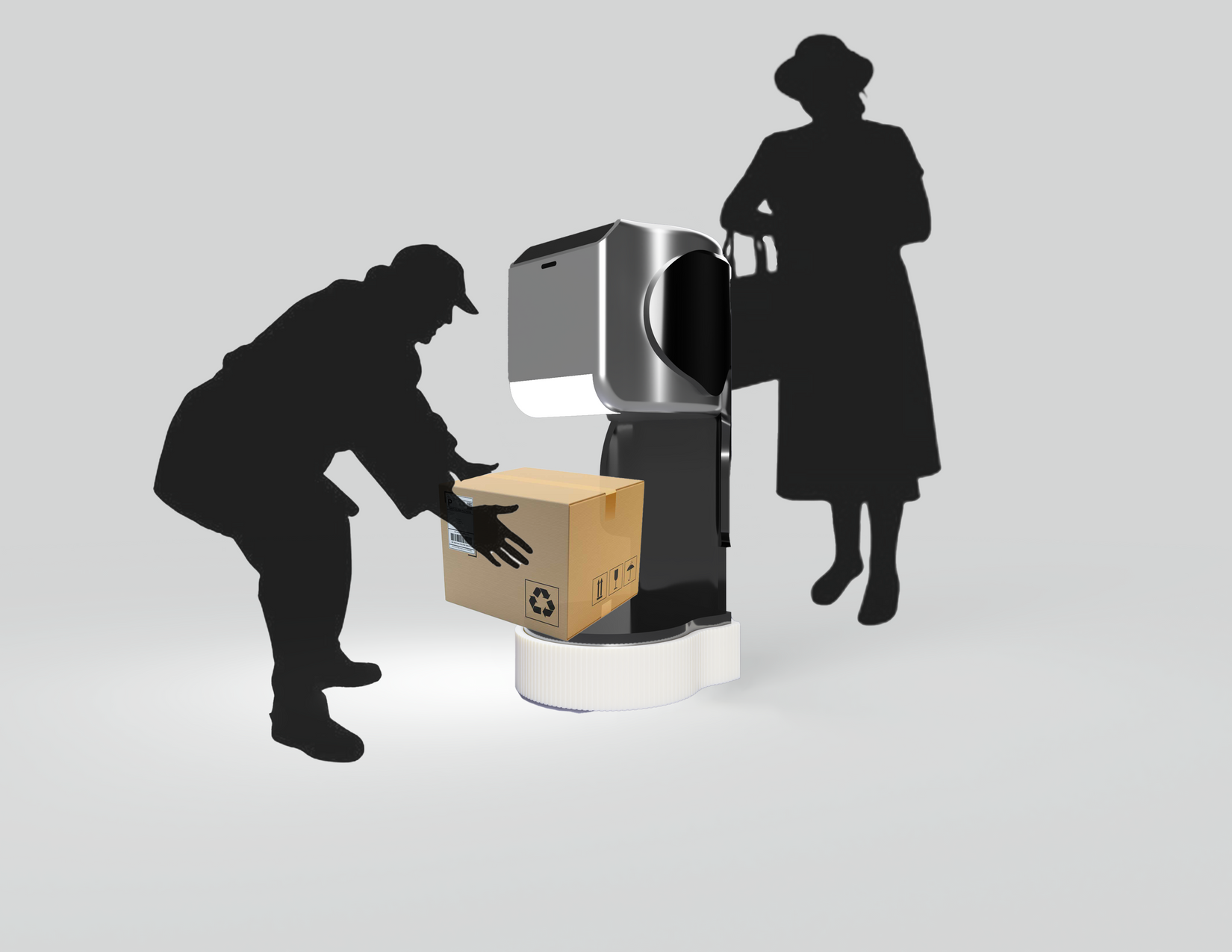

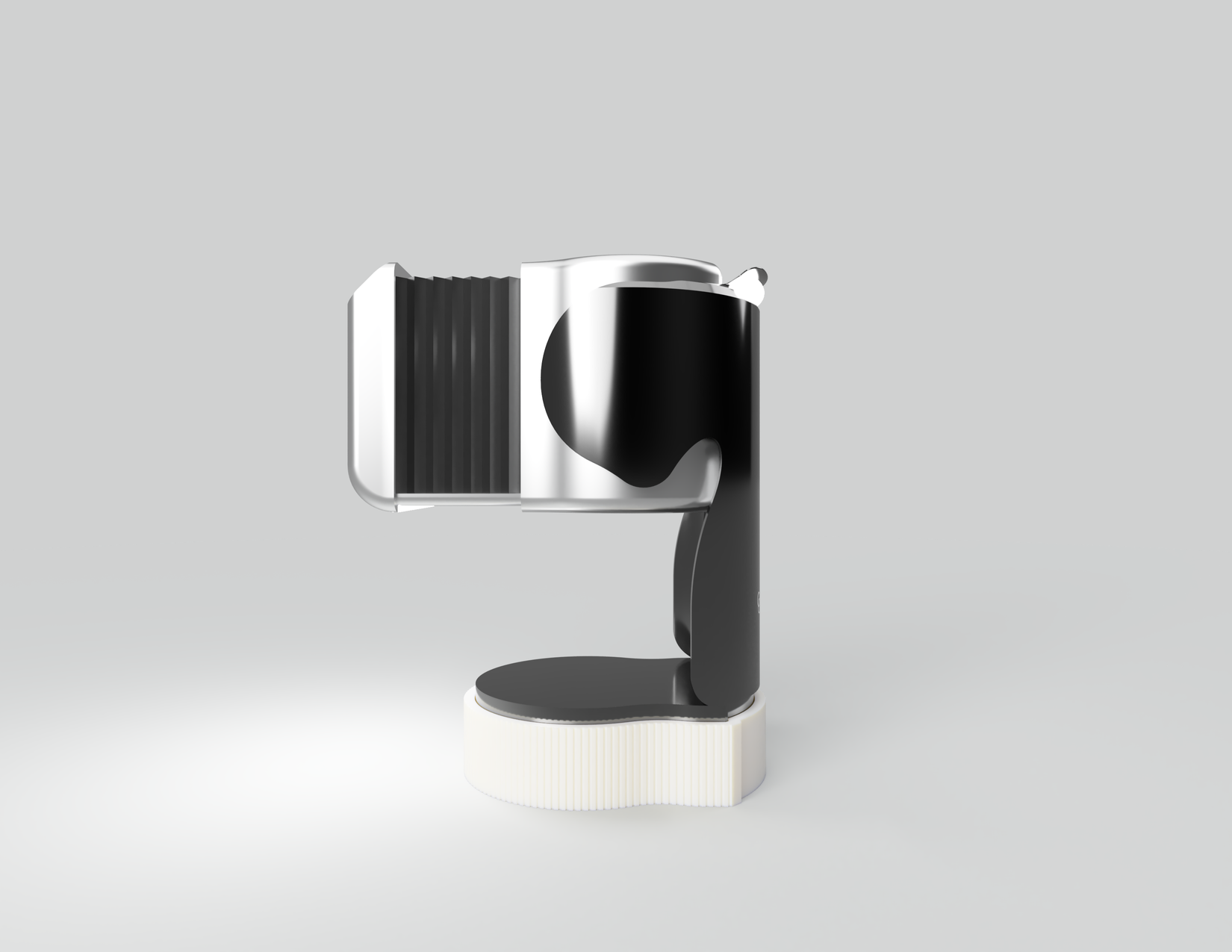

Automatic following

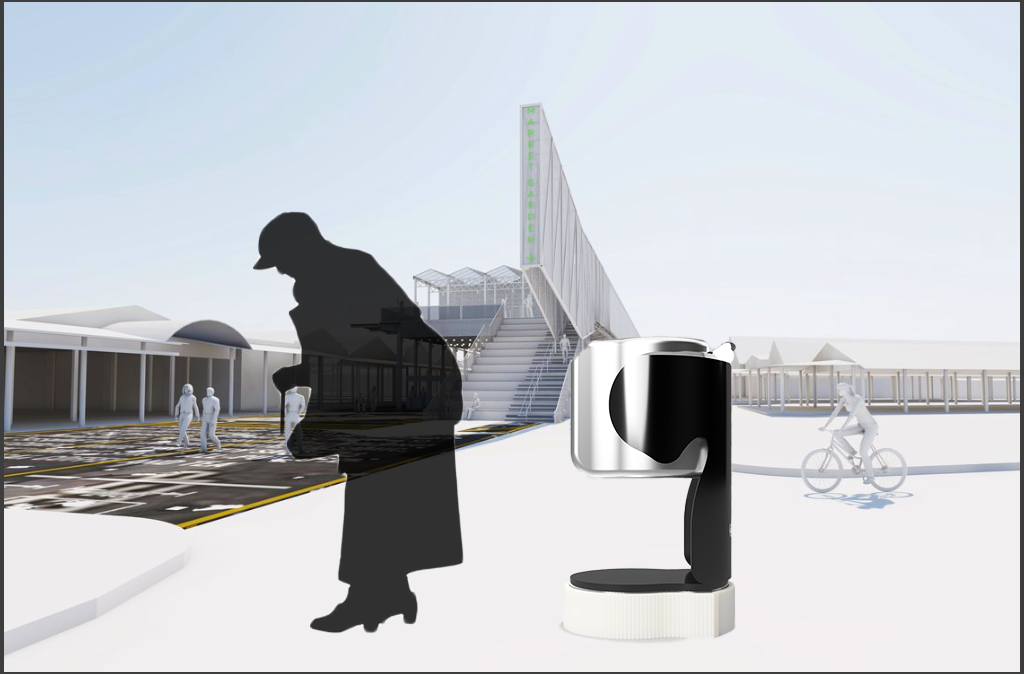

“TRUST” is a notion of freedom, nobility, independence, correspondence, and connections support design for senior. The trolley follow user to anywhere they go to assist them with carrying tasks.

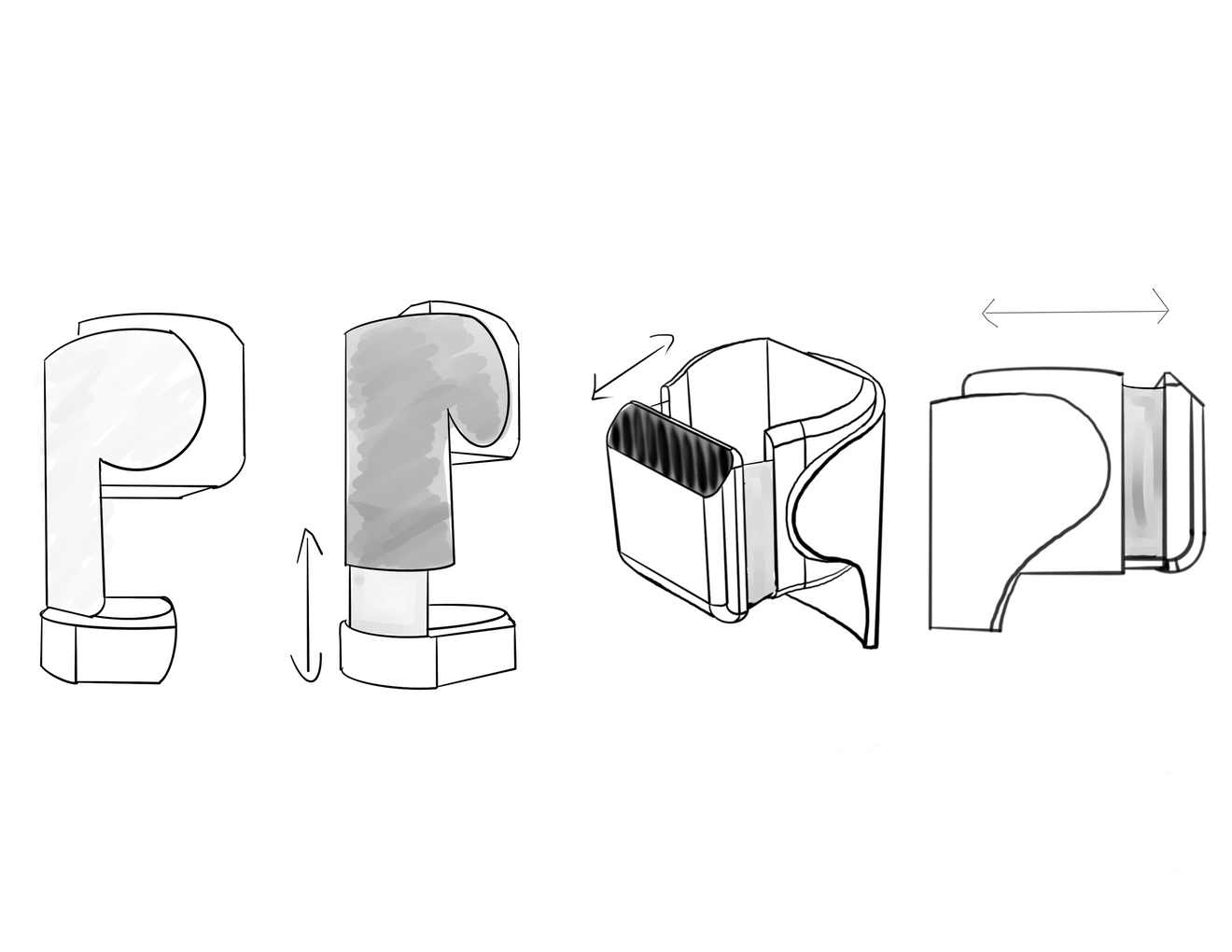

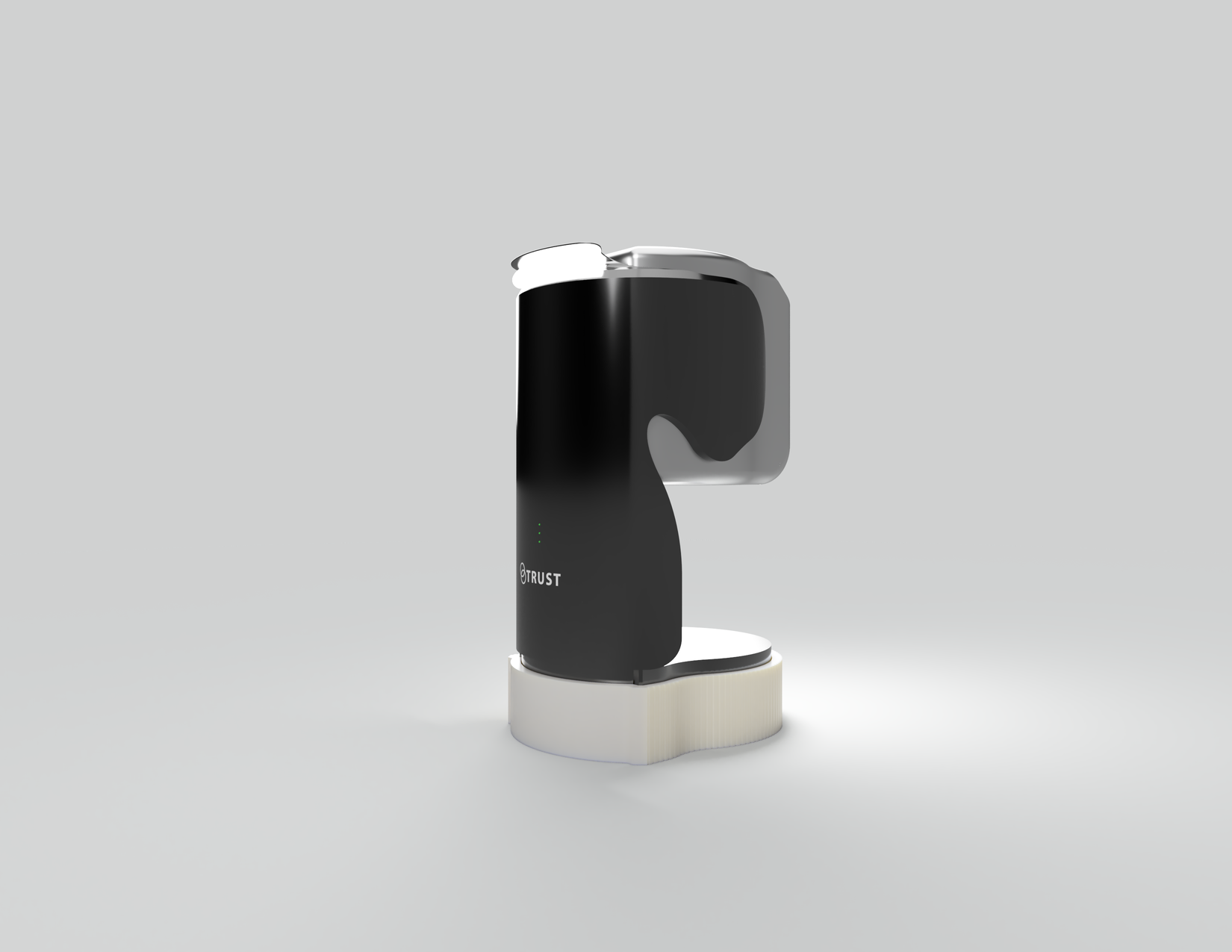

Scales adjustment for better storage

Ergonomic human- robot interaction design provides a sturdy engaging platform for user to interact effortlessly with a trolley. The height of the trolley can be adjusted to suitable with the height, reaching point, posture, and movement of user. The size of the container also can lengthen for larger store space and more functional.

Sensor and Detection

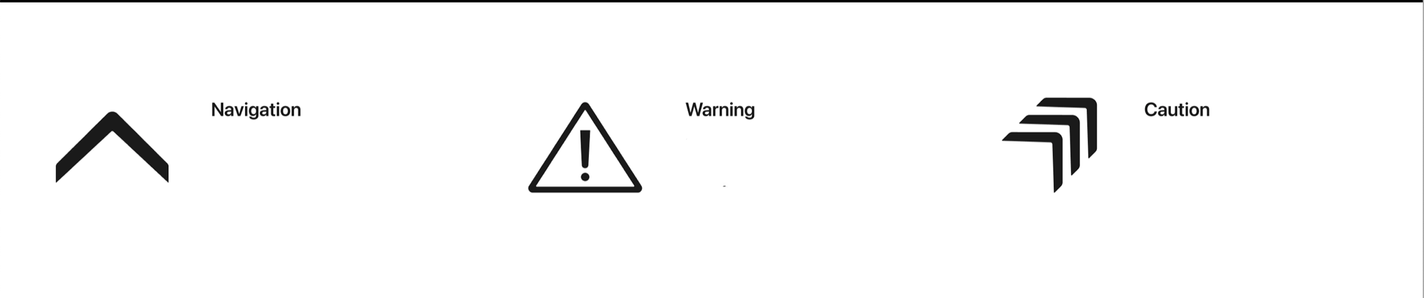

Light reflection on road

Sensor and camera recording and detecting dangerous to transfer light and sound signal to user.

Staying cautious

This sign keep user to always stay aware with surrounding and dangerous

A robot is act as user friendly factors which provide the most comfortable system to interact with user via both verbal and non-verbal communication. Sensors and auto brake system help the robot detecting objects encompass it to always keep a safety distance with human and dangerous situations while moving on the street.

Providing direction on the road, user do not need to look at the phone while walking

Recognising and warning the users from need attention situations

Recognising and warning the users from need attention situations

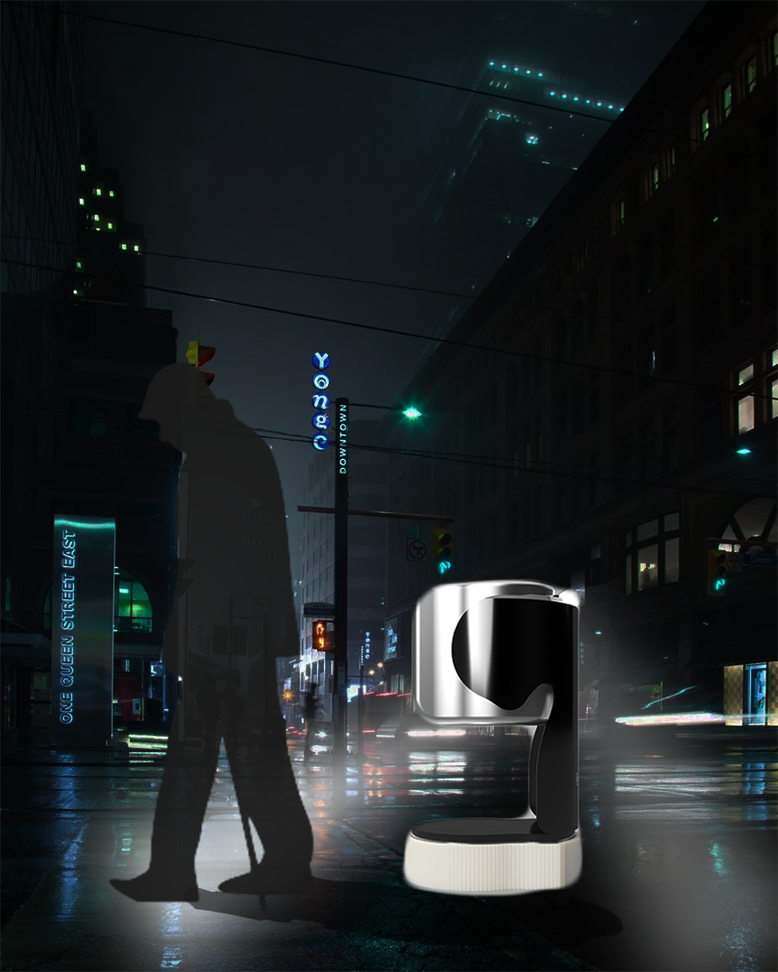

Lighting

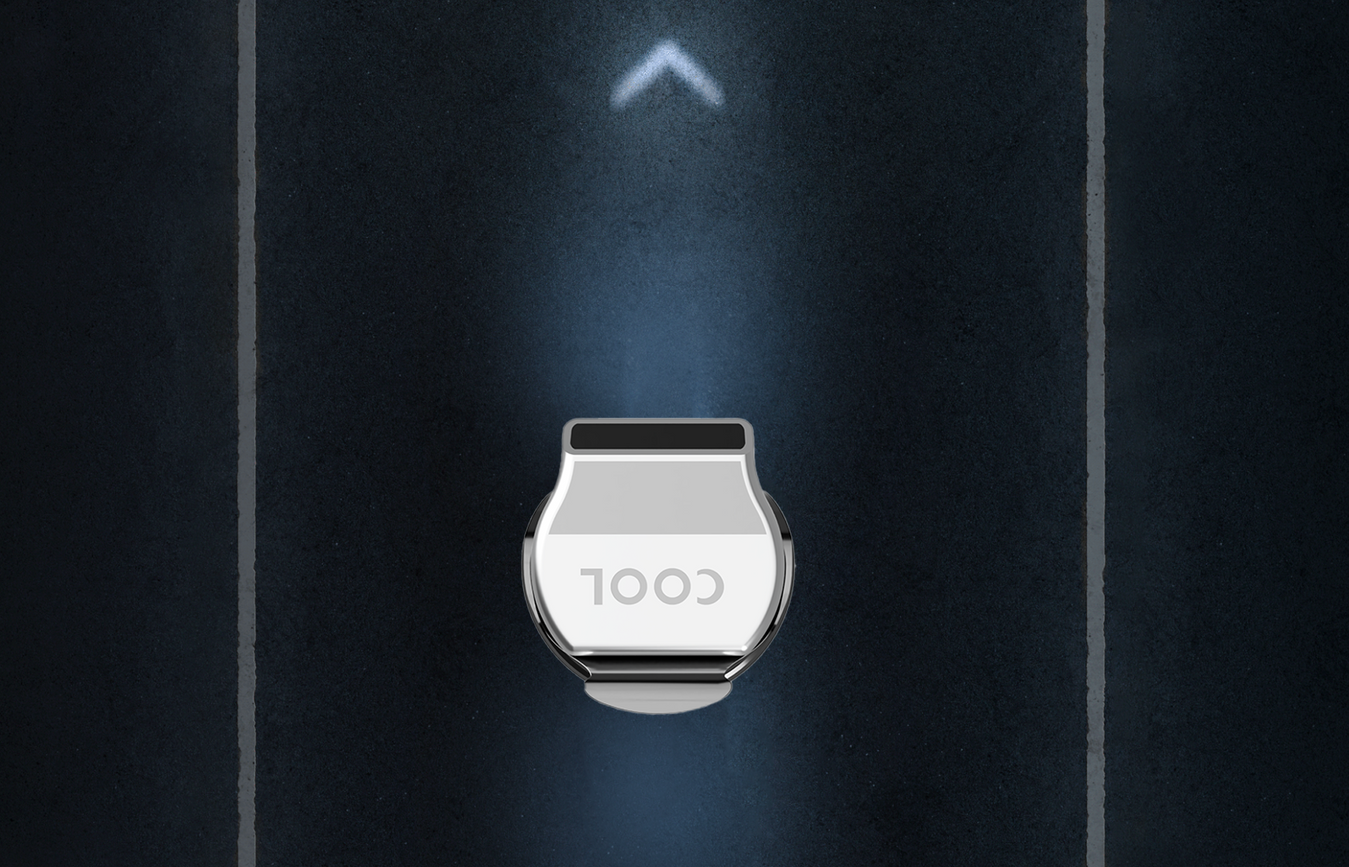

Lighting design light up the walking way at night to guide way for user. Front and back light features highlight safety which is the priority strategy of product.

Lights guiding

through the night road.

Technology

The combination of smart AI with friendly touch screen interface is always at the ready communicating mode that can support and provides essential information that user looked-for.

Lock

Turning off automatic following mode/ at manual mode trolley function as reinforce e-trolley

Light

Turn on/off front and back light, adjust the light luminosity

Tank extension

Adjust the size of the tank

Height adjustment

Scale up and down the height

Main screen

Display information and can interact with all secondary screen

Dou-interact screen

A screen can interact parallel with main screen

Manual mode

Communication design

Without mental excitement or customary human connection, anybody can easily be depressed, this is particularly valid for senior residents. This trolley bot design can obliquely improve mental health of senior and help them overcome their limited capability since the design giving a user stress-free and enjoy hand-free moments with the assistant from the robot. From apprehend a common side interest, “TRUST” is a significant piece of a more seasoned grown-ups length circle of help.

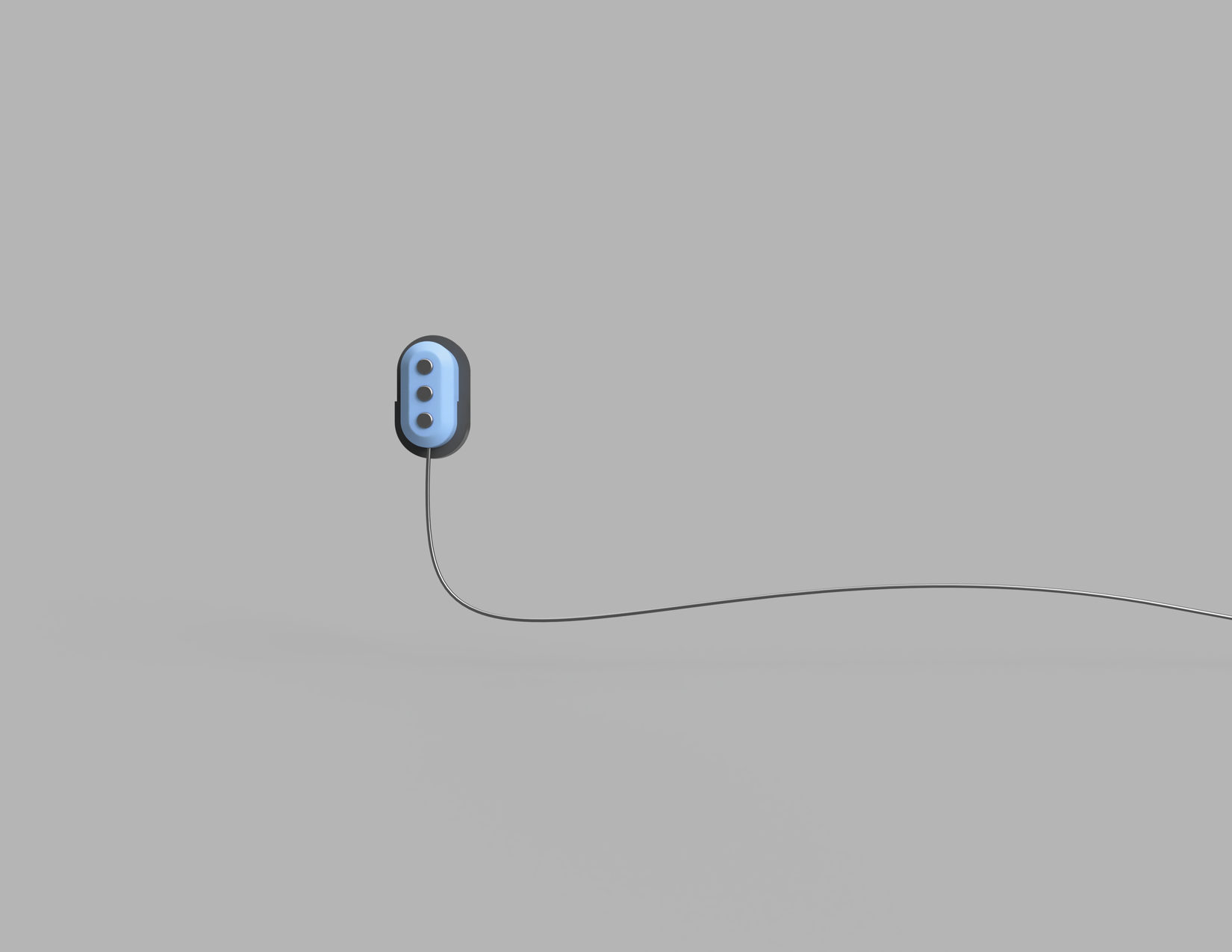

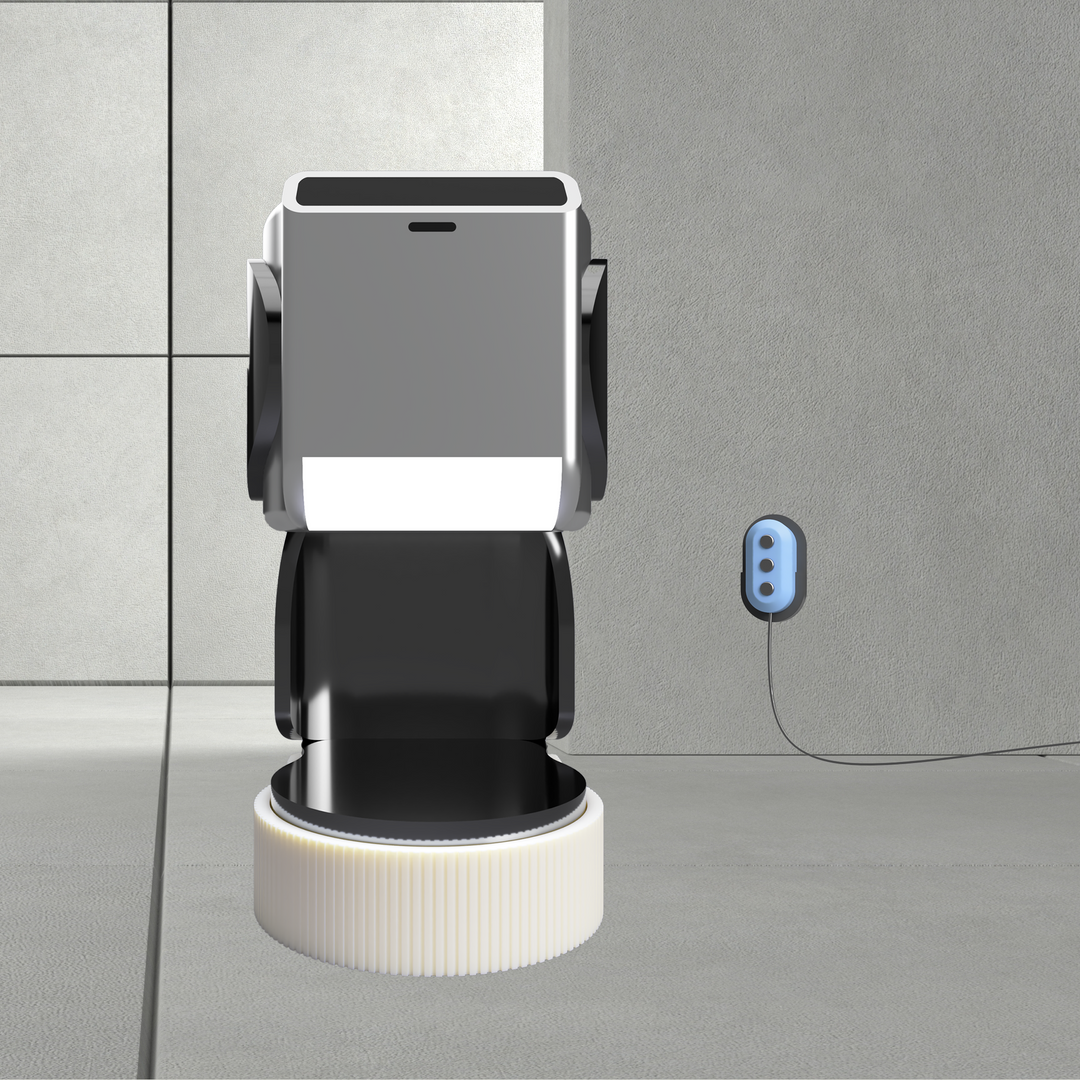

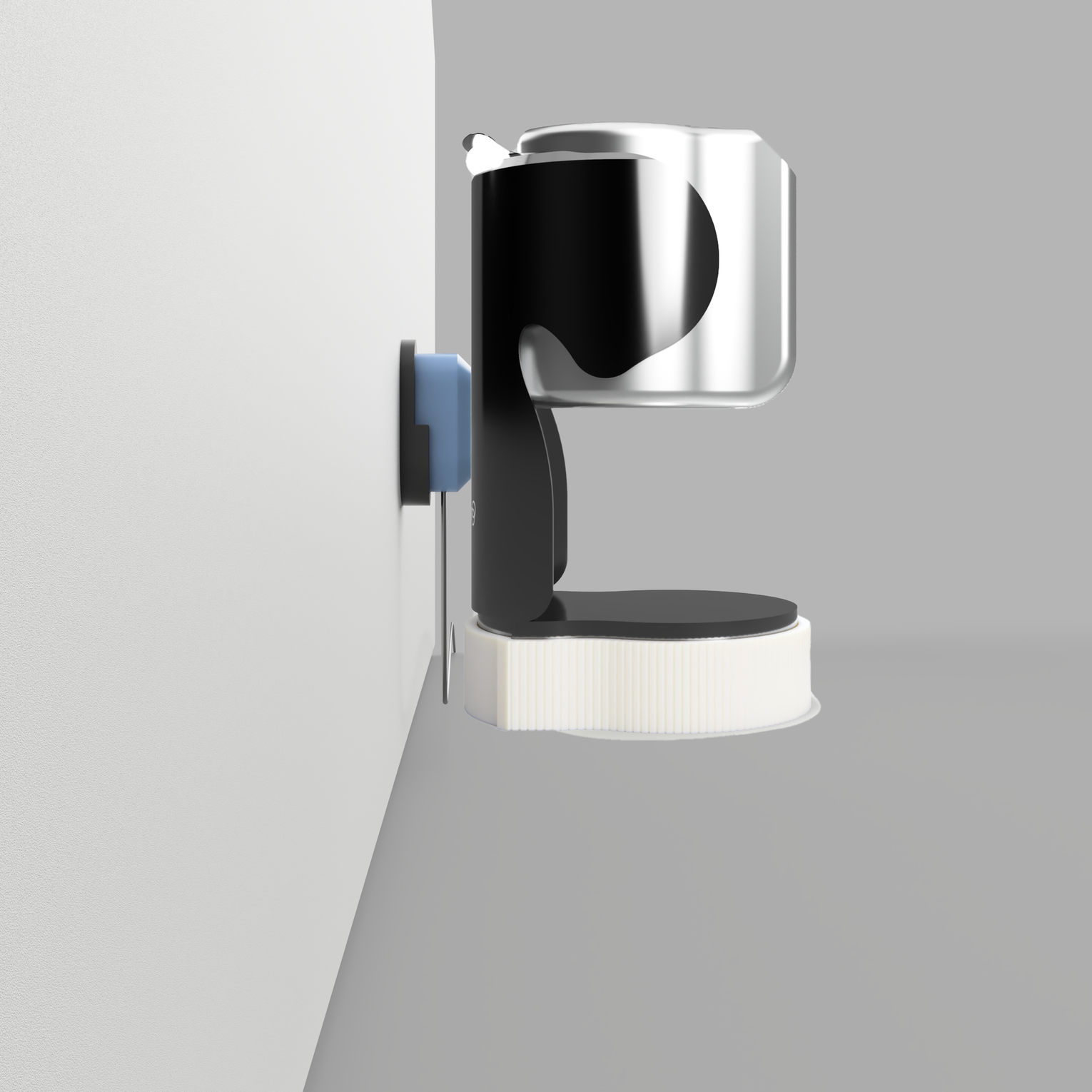

Charging

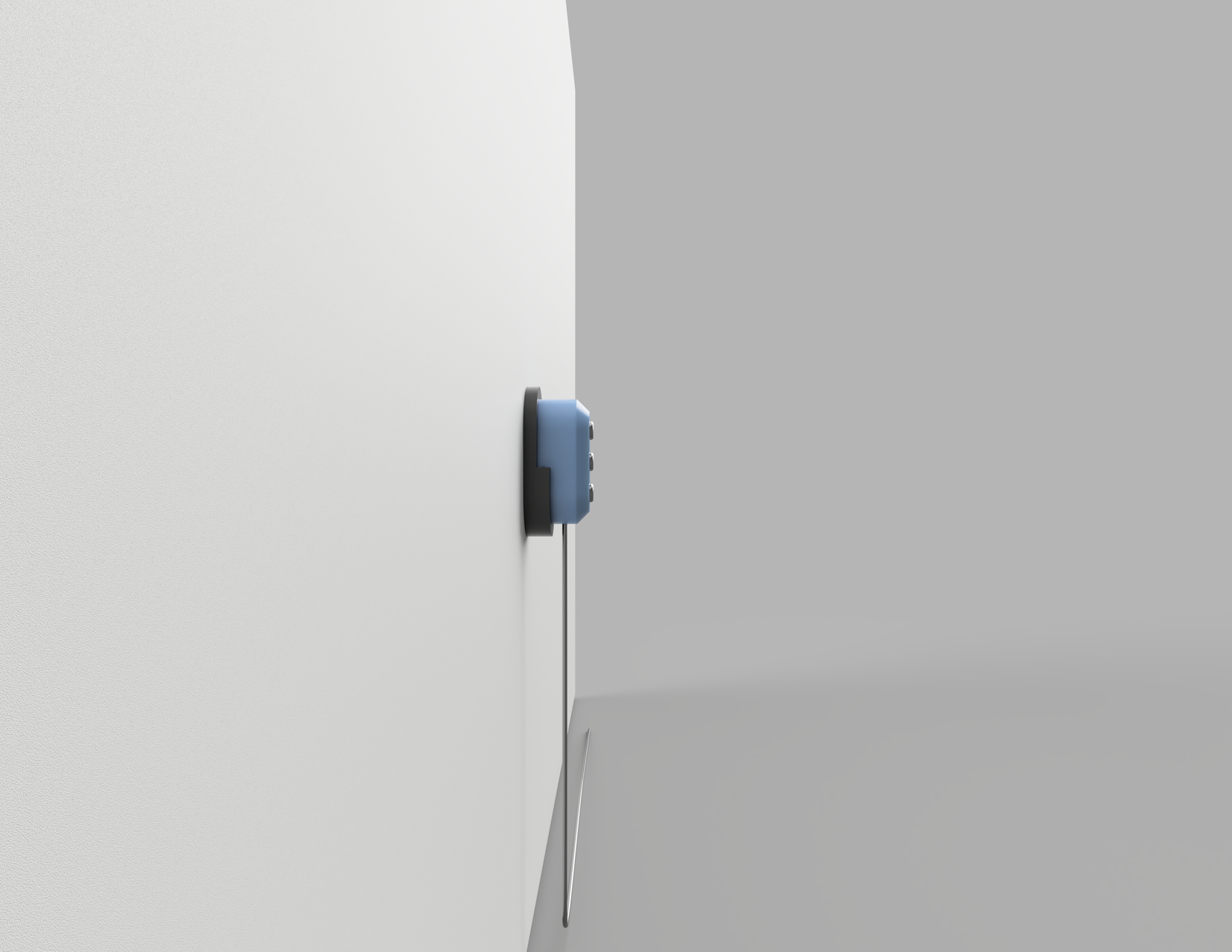

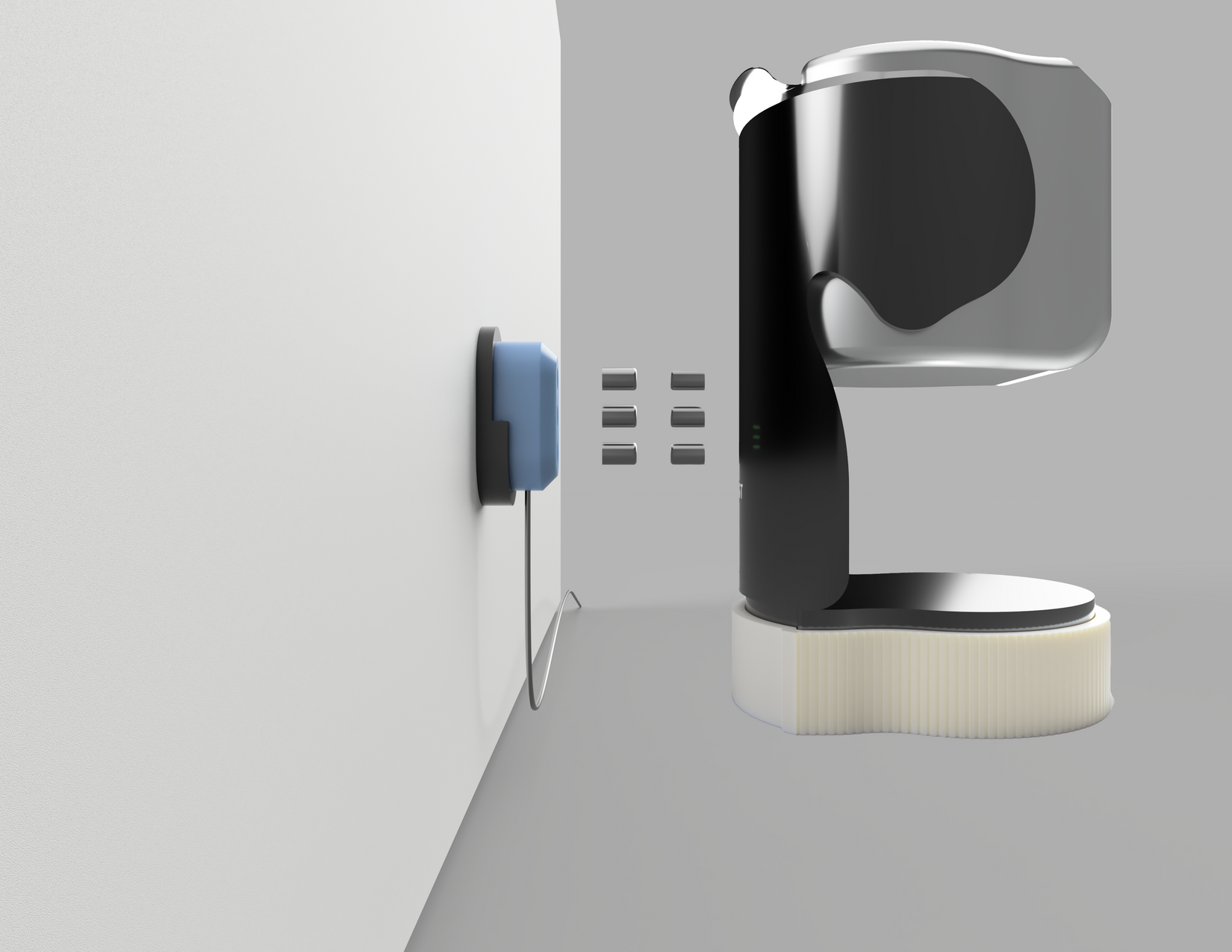

A safety magnetic charger with a small wall-mounted charging bot keep the charging place safe and clean. Magnetic charger is easy to use and quickly charge.

Details
